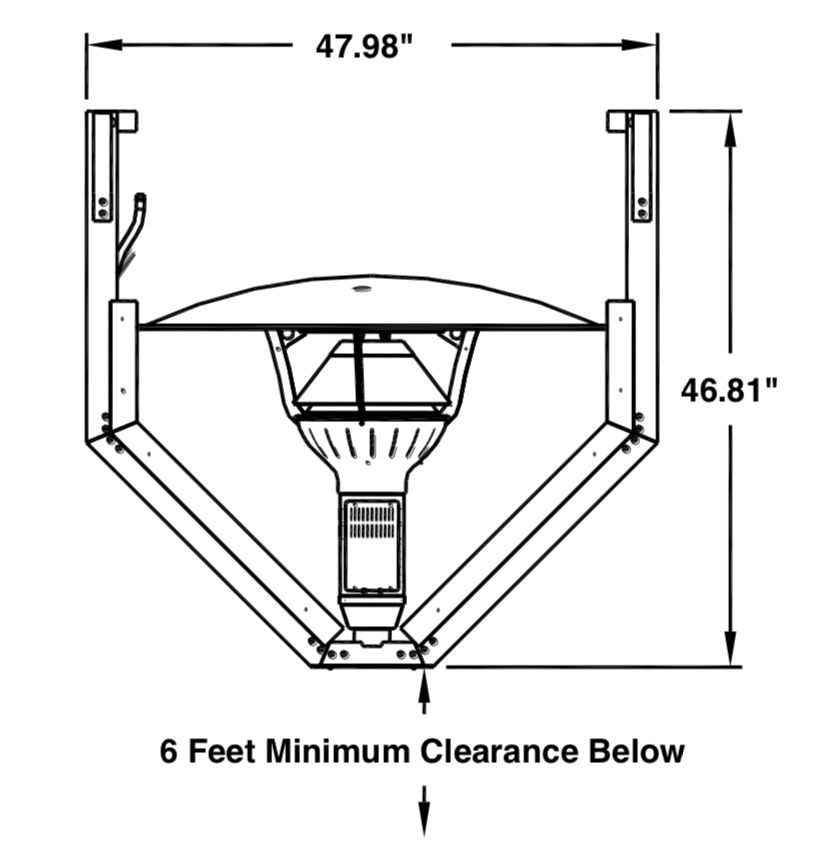

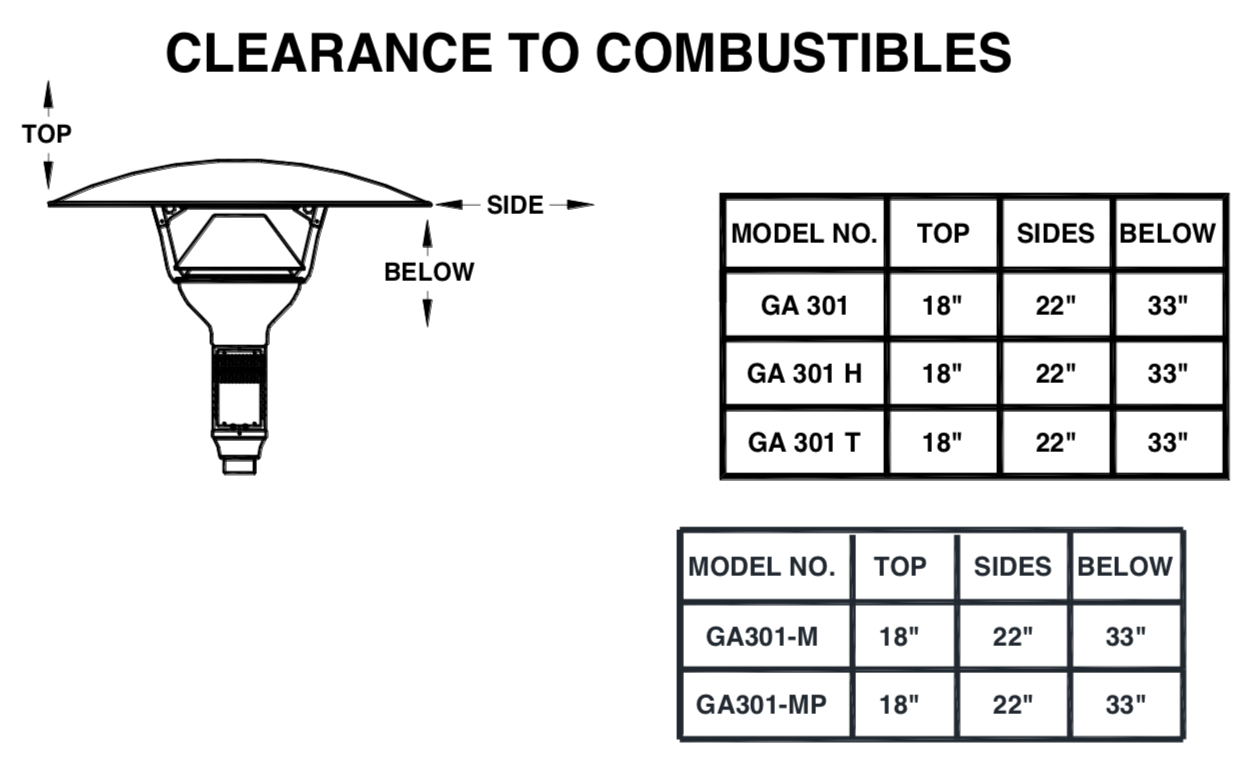

Professional installation is recommended for this product. Minimum clearance to combustible materials is required for proper airflow and safety standards.

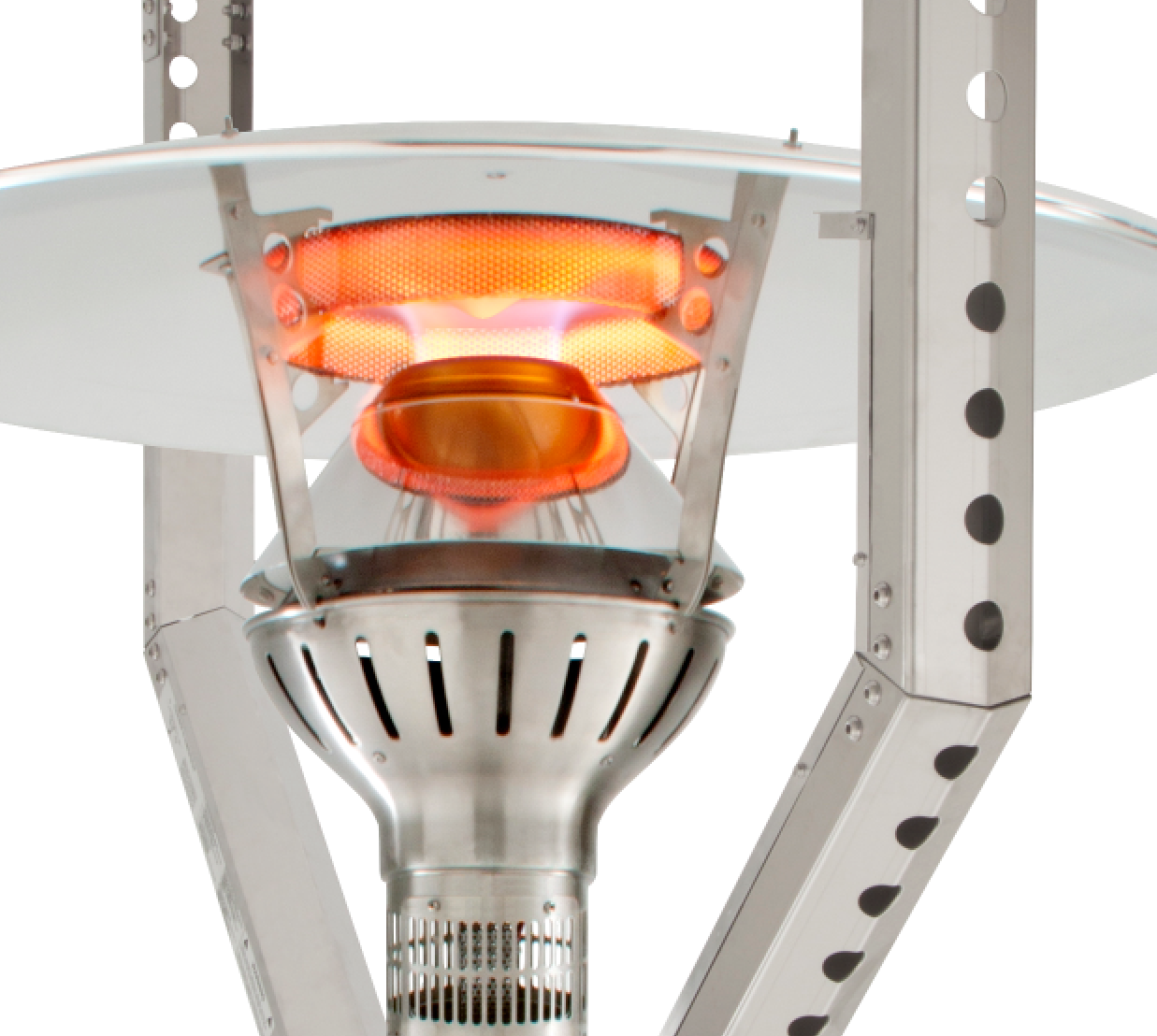

- Reflective arm bars for improved heat pattern
- Natural Gas or Propane
- Direct spark ignition – 3 try lock out, and automatic re-light
- Available in stainless steel or black
MANUAL (GA301, Models U, T, H, M, MP)
Accessories (Required, Sold Separately):
Heater Specifications:
| Manufacturer | IR Energy |
|---|---|

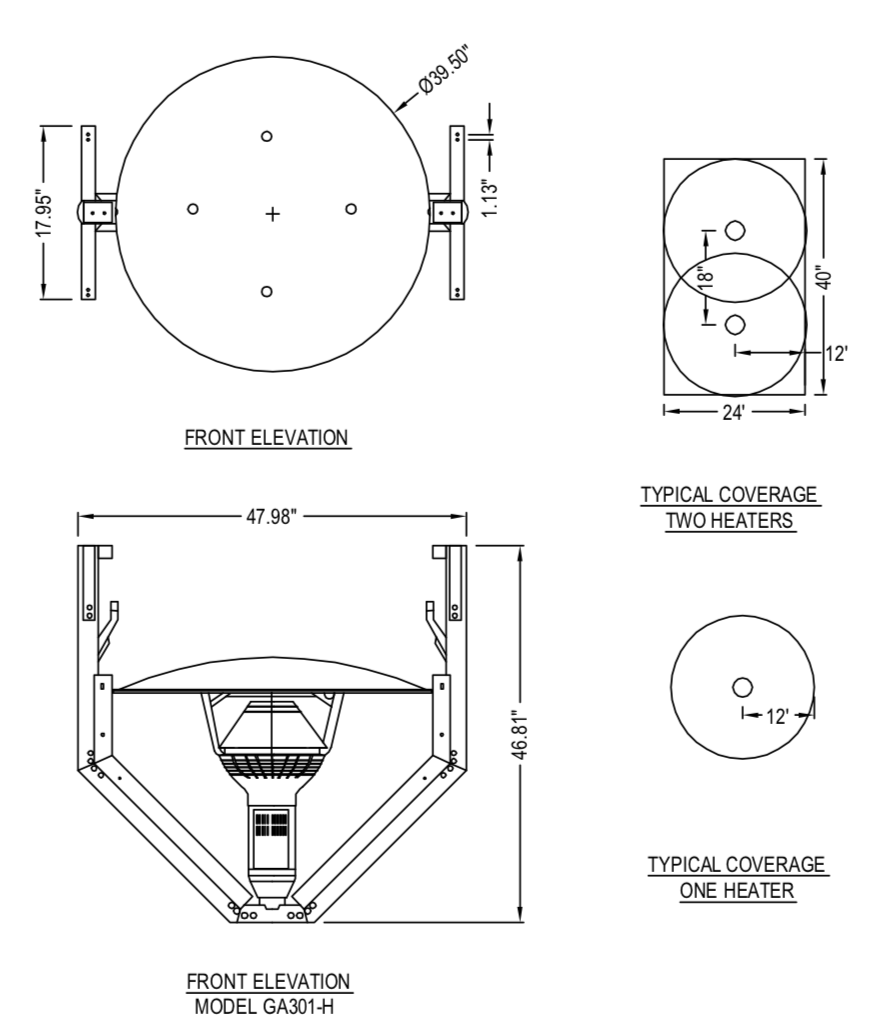

| Diameter |
39.5" (Mushroom) |
| Height |
47" (Top of Mounting Hardware to Bottom) |
| Width |
48" Including Mounting Hardware |
| Weight | 50 lbs Including Mounting Hardware |
| Assembly |
Some Assembly Required |
| Warranty |
Burner & Emitter: 3 Year Limited; All Other Parts: 1 Year Limited |
| Certification |
CSA Certified |
| Location |
Outdoor Only |
| Material |
Reflector: Aluminum |
| Fuel |
Natural Gas (NG) or Propane (LPG) |
| Ignition |
Electronic, 24 VAC Direct Spark Ignition with Two Stage Control Switch (Sold Separately) |
| Heat Output |
53k BTUs; Coverage up to 12' Radius |
| Colur |
Black, Stainless Steel |
| Other |
Safety Shut-Off Switch Included |
